Top 10 ⭐ Locking Solutions BRAVA EV SERIES COMMERCIAL LEVER SET (DDA COMPLIANT) ❤️

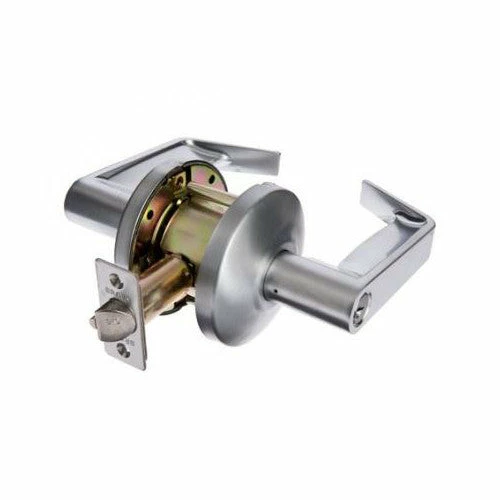

BRAVA Metro EV6000 series commercial grade entrance leverset with clutching levers.

BCA AS1428.1 -2009 compliant leverset.

Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.

Entrance function

• Outside key locks and unlocks exterior lever.
• Inside lever free at all times, snib inside locks and unlocks outside lever.

Passage function

• Both outside and inside levers are always free.

Storeroom function

• Outside lever unlocked by key, lever retracts the latch.
• Outside lever can not be left unlocked, key retained.
• Inside lever free at all times.

Classroom function

• Outside key locks and unlocks outside lever
• Inside lever free at all times

Glass Door function

• Outside key locks and unlocks both levers.
• Inside key locks and unlocks both levers.

Privacy function

• Outside opened by lever when free. Can be opened in an emergency situation with a coin or screw driver.
• Inside opened by lever at all times, external lever locked with turn snib from inside

Institution function

• Key from either side retracts latch only.
• Levers on both sides clutching at all times.



Specifications

Door thickness	35 mm – 51 mm
Backset	70 mm
max. Lever / knob projection distance may not include turnsnib	74 mm
Strike	28 mm x 70 mm x 2 mm
Latch	70 mm (12.7 mm throw)
Latch face plate	57 mm x 25 mm
Cylinder	LW5 profile
Door handing	Non-handed levers
Rose	85 mm
