*Non stocked product – Please allow 3-5 business days to dispatch*

A heavy duty, automatic door bottom seal that is spring loaded to lift clear of the floor when the door is opened. It is self levelling and reversible for left and right handed operation. Acoustically designed, it features a silicon gasket for medium temperature smoke and fire door applications. Doubles as a kick plate when semi-morticed. Operated automatically by pressure against the door jamb or stop on its adjustable brass strike.

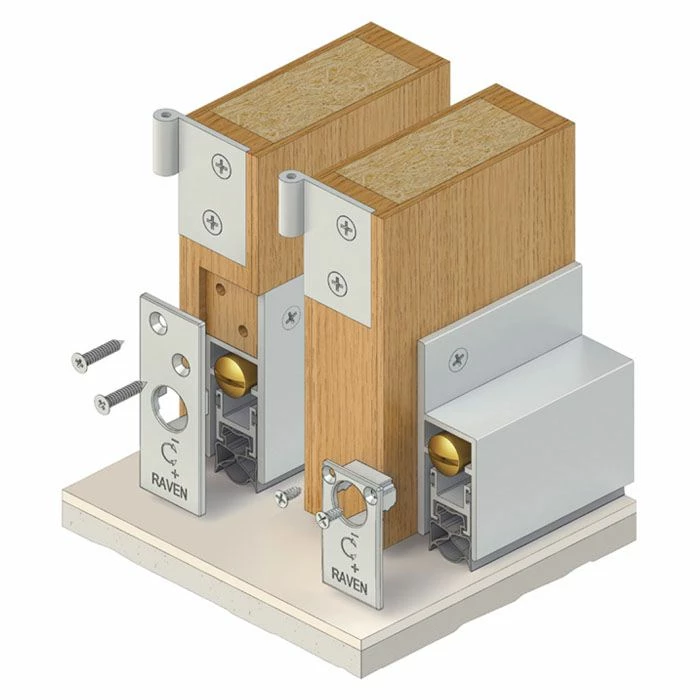

Location: Face mounted or semi-morticed into bottom of single and double butt hinged doors. For semi-mortice minimum door thickness of 50mm for rebated meeting stiles and 40mm for plain meeting stiles is required. Can be face mounted to the bottom of metal doors.

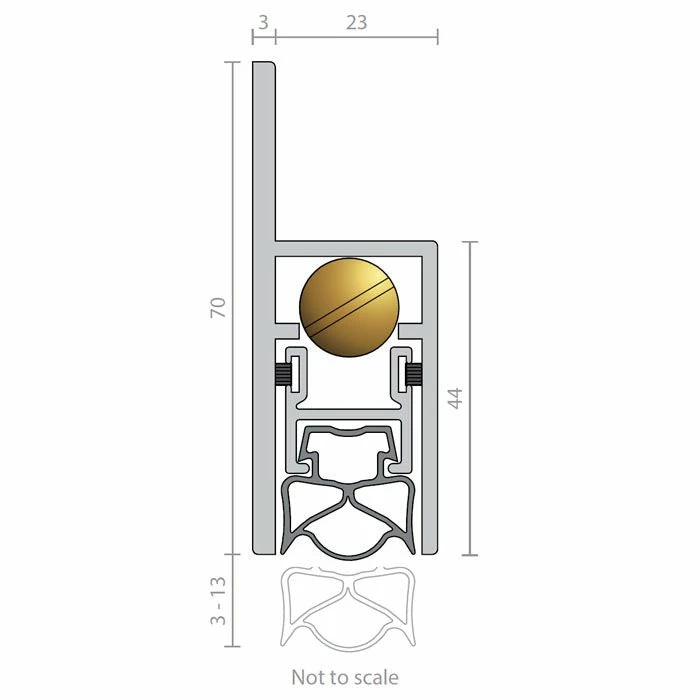

Min/Max Gap: 3mm to 13mm.
Finish: Satin clear (silver), (bronze anodised aluminium (15micron) or paint at extra cost SPECIAL ORDER).
Fixing: Screw fix. Colour matched escutcheon plates and zinc plated, cross recess head S.T. screws supplied.
Seal: RP338Si. Grey Silicon Rubber (SE).
Sizes: 1500mm, 1220mm, 1070mm, 920mm, 610mm, 450mm to 300mm(min). Seals cut back to exact size.

Approvals
UL Cert. GVYI.R37913
Acoustic AUS/NZ: NCC Spec. F5.5.
UK/EU: Approved Document E. Rated to BS EN ISO 717.1.
Fire AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2 & App. C6.1.1.
UK/EU: Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
FRL & FRR-/240/60 and FD240. Fire Approved
Gasket flammability index 1 when tested to AS1530.2.
Smoke NCC Spec. C3.4. AS1530.7 & BS EN 1634-3. Meets smoke leakage rates specified in AS6905 & EN 13501-2 “Sa”, “Sm”.
Energy NCC Pt. 3.12.3.3 & J3.4.
Design for Access and Mobility High efficiency mechanism to assist with the closing force requirements detailed in AS1428.1.
Durability Tested to over 1,000,000 operating cycles without failure.

Patented, Registered Design.

Accoustic Rating to AS1191 and ISO140.3	Yes
Fire tested, check with manufacturer for further details.	Yes
Includes Fixing Screws	Yes
Material	Aluminium
Finish	Various
Max Door Gap	14mm
Min Door Gap	3mm
Rebated	Semi rebated or face fixed to bottom edge of single action doors
Self Adhesive	No
Suitable for Smoke Doors	Medium temperature smoke leakage tests to AS1530 Part 7 available on proprietary door assemblies. Conforms with NCC Specification C3.4 smoke sealing requirements.
Warranty	2 Years
