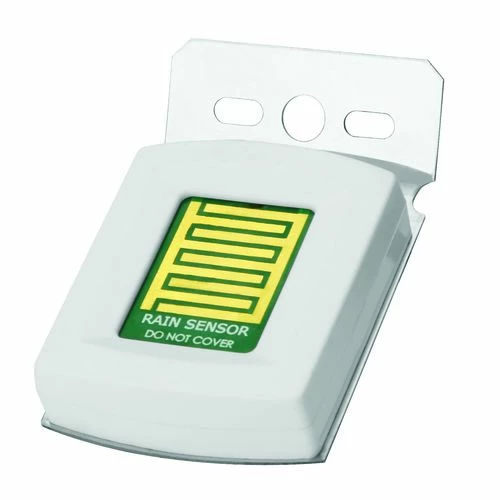

Deals 🔔 LOCKWOOD ELEVATION RAIN SENSOR (INCLUDES NETWORK ADAPTOR) Locking Solutions ⌛

Lockwood’s Elevation® is an Electric Window Control System designed to control your windows with a touch of a button. Elevation can be configured to reflect the unique layout of any home or commercial building but is primarily used to control windows that are hard-to-reach. Elevation is a flexible solution that will suit multiple window systems ² and applications.

Window actuators can be installed in pairs that will cater for windows up to 2100mm wide or for heavier double glazed window systems ³.

Elevation conforms to the Building code of Australia, relating to the “Prevention of Falls from Windows” when used in conjunction with approved window systems. Elevation allows for a generous window opening (300mm) but can also be restricted at 15mm increments and ultimately restrict the window opening to 125mm or less.

Window actuators can be connected to a Lockwood touch screen display and Zones, such as lounge, hall, bedroom, North and east facing can be easily set up.

Alternatively you can also choose to control your windows with a standard wall switch or via any 3rd party Cbus or Building management system ⁴.

Elevation is easy to install with the flexibility of adding additional windows at a later stage. Ultimate control is only a touch away with the option to instantly close all windows at once when leaving the house, or locking up for the night.

Applications

• Awning and casement windows
• High out of reach windows
• Conveniently open single or a group of windows
• Commercial buildings
• Residential buildings

Features

• Actuators can be controlled individually or grouped into zones
• Actuator can withstand 220kg applied negative pressure*
• 9kg closing force ensures a tight window seal when closed
• Smooth chain movement
• 40 seconds Opening/closing time
• 300mm chain opening
• Strong, corrosion resistant stainless steel chain (grade 304)
• Field adjustable chain limiter. Limit chain between 50-300mm @ every 10mm
• Quick clutch release Key for easy installation without power connected
• Connect and synchronize a pair of window actuators to one large window
• Ability to install actuator in multiple orientations including top and bottom chain exit.
• Will cater for window sashes as short as 300mm high**
• Can connect to touch screen display, standard wall switch or Cbus systems
• Network cabling can span up to 300m without voltage drop
• Connect and control up to 30 window actuators to a touch screen display
• Can connect multiple actuators (31 maximum) to a standard wall switch

* Through sash fixing is required to reach this force
** Please see our website for the exact window size allowance, large or short windows may be restricted in terms of opening

Reference notes

2 See fitting instructions to ensure that Elevation is suitable for your window type or size, Elevation is suitable for awning and casement windows.

3 See website lockweb.com.au for the exact window size allowance. Large or short windows may be restricted in terms of opening.

4 One Network adaptor is required to control your windows via a switch or Cbus system, refer to 3rd party connections for more information.

Cabling
Control Loom: 2m extend up to 300m (Twisted pair)
Power Loom: 2m

Chain Clearance for Sill
Top Chain Exit: 18.5mm (without Pivots)
Top Chain Exit: 20.0mm (with Pivot)
Bottom Chain Exit: 2.5mm (without Pivot)

Chain Length 300 mm
Chain Limiting Limit chain between 50-300mm @ every 10mm

Current
Standby Current 20mA
Maximum Peak Load 750mA

Endurance
12,000 Cycles

Environment Operational temperature range
0° to +60°C

Finishes

• Black (BLK)
• White (WH)
• Special Powdercoat (PPC)

Humidity
90% @ 35°C

Materials
Furniture body: cast zinc.
Sash Bracket components: Cast 303SS
Chain: Stainless 304

Monitoring
Monitor Open Closed 15mm or 50%

Negative Holding force
220kg Applied force at chain

Noise Level
65dB @ Maximum window Load

Open / Close Force
9kg

Voltage
24-32 VDC

Dimensions
mm 32H x 308L x 44D (not including sash bracket)

• Power supplies needs to be ordered separately. Calculate the power consumption of total products used and ensure you order the correct quantity and size power supplies
• All Window actuators are the same regardless if they connected to a touch screen keypad, standalone switch or connected as a synchronized unit
• Rain sensors will only work when connected to touch screen display network
• If you require a window actuator that’s connected to a standalone switch you will need one Network adaptor (EWAC-SNA) per switch
• If you require a window actuator that’s connected to a Cbus system you will need one Network adaptor (EWAC-SNA) per relay output
• You can connect a maximum of two keypads per network
• You can connect a maximum of four rain sensors per network
