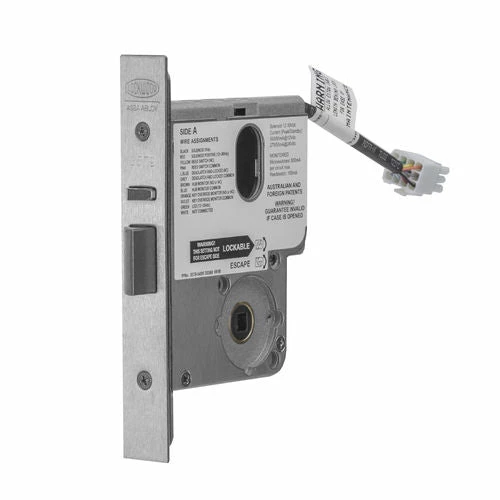

Buy 🛒 LOCKWOOD 3579 SERIES ELECTRIC MORTICE LOCK (MONITORED) Locking Solutions 😀

Key Features:

Designed with flexibility in mind, the one lock can cover all functions and is easily configured on site for the required application.

• Stainless Steel Latch and Faceplate
• Stainless steel plates that encapsulate the body against attempted vandalism
• Available in Monitored versions only

  Monitoring Features:
• Dead latched and Locked
• Door position/Reed switch
• Dual key override monitoring
• Request to exit/REX
• LED indication

  Field Changeable Settings:

• Fail safe/fail secure configuration.
• Multi-voltage – will work on 12-24 VDC systems.
• Handing – left hand and right hand doors
• Selection of free lever or locked lever on both sides of the door
• Key override monitoring either side of the door
• Monitoring contacts – normally closed, normally open (for key override and request to exit only)

Specification Statement:

The lock body should be encapsulated with stainless steel. The lock should be capable of operation on voltages between 12 – 24VDC and have a current consumption not more than 80mA (holding) @12VDC and 50mA (holding) @24VDC. Monitored locks must be capable of monitoring the following functions: Key override, door position / reed switch, selectable hub / Request to exit, & locking bar status. All monitoring outputs must have the ability to be wired independently. All settings – including: fail safe / fail secure, handing, hub selection must be field configurable.
