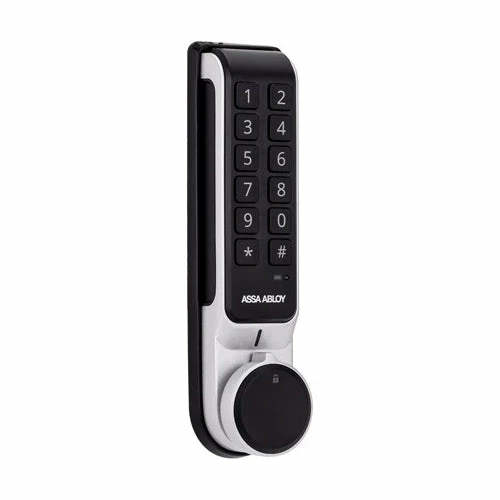

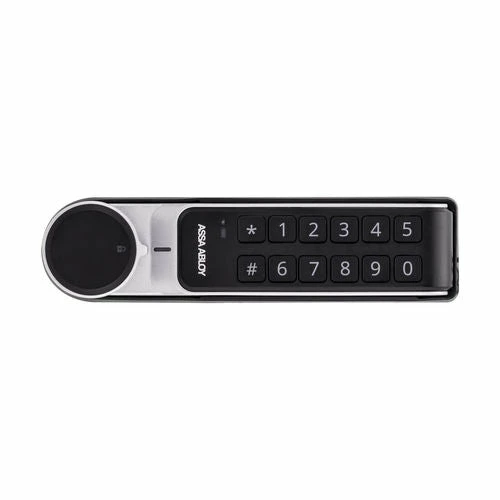

Budget 👍 Lockwood ASSA ABLOY ML51PA DIGITAL PIN KEYPAD CAM LOCK Cabinet & Drawer 😍

ASSA ABLOY’s new digital cam lock range is now the industry benchmark. The ML5000 Series has been developed for the most demanding government, commercial and institutional organisations. There are two variations to choose from, Digital PIN Keypad or RFID, offering a range of features in both that meet the requirements of lockers in a range of applications.

Features

• Attractive slim line design
• Battery status LED
• Lock status LED
• Standard Alkaline batteries, 3 x AAA
• Micro USB power back up
• Suits doors up to 23mm thick
• 3mm thick stainless steel cam
• 4 – 12 digit Master PIN
• 4 – 12 digit User PIN
• Private code or Public Change Code mode (similar to hotel safe)
• Sound Mode – On or Off
• Temporary wrong code lockout

Applications

• Schools
• Offices
• Leisure centres
• Sports clubs
• Health clubs

Material
Die-cast  (Body & Knob), ABS (Front)

Operating Temperature
-20^oc ~ +70^oc

Operating Humidity
 0 ~ 90%

Credential Levels
1 x Master PIN, 4 to 12 digit
1 x User PIN, 4 to 12 digit

Battery / Life:
3 x AAA Alkaline batteries
1.5 Years (using 10 times a day)

Salt spray tested to:
96 hours

Compliance


Door Thickness
1 to 23mm

Cam
 2 x Standard 3mm thick stainless steel cams supplied, one straight cam, one offset cam

Note: Other 8 x 8mm square drive cams are suitable for this product

Package Contents:

1 x ML51PA lock
1 x Rubber gasket
1 x Rubber ring washer
1 x M16 nut
1 x Cam governor (limits cam to 90°)
2 x Cams (1 flat, 1 offset)
2 x M4 washer
1 x Cam fixing bolt – M4 x 10mm
4 x Upper lock fixing bolt options to suit door thicknesses;

• 1-3mm doors – M4 x 10mM
• 3-13mm doors – M4 x 20mM
• 13-18mm doors – M4 x 25mm
• 18-23mm doors – M4 x 30mm

Download Catalogue HERE
